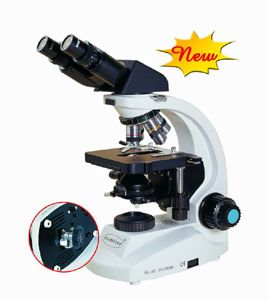

Professional Microscope

Features:

• Pair of high eye-point PL10X eyepieces with eye caps
• 30° inclined head rotatable 360°
• 132mm X 140mm graduated mechanical stage, 76mm x 50mm range of traverse
• 4 Plan achromatic objectives, 4X (N.A. 0.10),10X (N.A. 0.25), 40XR (N.A. 0.65) and 100XR oil (N.A.1.25)
• Swing out N.A. 1.2/0.22 achromatic condenser
• Built in Koehler illuminator systems
• Coaxial coarse and fine focusing tension control knobs
• Variable intensity halogen illuminator, 6V 20W wide range voltage transformer applied to use in 90V~240V outlets for international market
• Focusing, stage and light intensity knobs at your fingertips to minimize fatigue
• Replacement bulb, fuse and immersion oil
• Size: 8” X 13” X 15” (H)
• CE

Replacement lamp: MA07 Shipping weight: 15 lbs.

Optional Upgrade:

• PL15X or PL 20 high eye-point eyepiece
• Turret phase contrast set

PL10X eyepiece compared with WF10X eyepiece:

• You don’t need to take off your glasses to view with PL10X
• Greater wide field image: PL10X, Ø22mm; WF10X, Ø20mm
• Clearer: PL10 of lens distortion is 4%. Regular WF10X is 5.5%
Why a swing-out condenser?
The best aperture for lower power objectives (4X & 10X) is 0.22 and the best aperture for 40X and 100X is 1.20. Swing-out condenser is designed to fill both needs
